Industrial Gaskets

Embrace the reliability of our Industrial Gaskets, meticulously crafted by a renowned manufacturer and trusted supplier with over 18 years of astounding industrial expertise, catering flawlessly to fabricators, OEMs, and maintenance contractors throughout All India. Our extraordinary product range features CAF Gaskets, Spiral Wound Gasket, PTFE Cut Gasket, Piston Ring Gasket for Valve, and Rubber Gasket, each engineered for gorgeous performance and remarkable durability in even the most demanding industrial applications. Boasting top-rated leak-proof sealing, stunning temperature and chemical resistance, easy installation, exceptional dimensional stability, and premium longevity, our Industrial Gaskets outshine limited stock generic alternatives found elsewhere. Clients across India consistently choose our top-grade solutions for their reliability and unmatched supply capability, ensuring seamless and efficient operations in every project. Choose our Industrial Gaskets for the most dependable, high-value, and performance-driven outcomes that set a new industry standard.
CAF Gaskets

CAF Gaskets

MOQ : 100 Units

  • Application
  • Used as a sealing material for flanges, engines, pipelines, and chemical equipment
  • Gasket Coefficient
  • 1.5 - 2.5
  • Hardness
  • 80-100 Shore A
  • Inner Ring
  • Not included (Optional as per design)
  • Material
  • Other, Compressed Asbestos Fibre (CAF)
  • Medium
  • Other, Oil, Steam, Water, Gas, Chemicals
  • Outer Ring
  • Not included (Optional as per design)
  • Pressure Resistance
  • Max 150 bar
  • Shape
  • Other, Round, Oval, Custom shapes available
  • Size
  • As per requirement (customizable)
  • Standard
  • IS 2712 / ASTM F 104
  • Temperature Resistance
  • -40C to +400C
  • Thickness
  • 0.4 mm - 5 mm
  • Vaccum Range
  • Full vacuum
  • Working Temperature
  • Up to 400C
Know more
Champion Gasket

Champion Gasket

MOQ : 100 Units

  • Application
  • Industrial sealing, engines, pumps, pipelines
  • Gasket Coefficient
  • 0.7 to 0.8
  • Hardness
  • 65-80 Shore A
  • Inner Ring
  • Available on request
  • Material
  • Other, Non-asbestos fiber, compressed fiber, graphite, CNAF, rubber composite
  • Medium
  • Other, Oil, steam, water, gases, chemicals
  • Outer Ring
  • Available on request
  • Pressure Resistance
  • Up to 100 bar
  • Shape
  • Other, Round, oval, irregular, and custom shapes
  • Size
  • Customizable as per requirement
  • Standard
  • IS, DIN, ASTM, BS, MSS
  • Temperature Resistance
  • Up to 350C
  • Thickness
  • 0.4 mm to 6 mm
  • Vaccum Range
  • Full vacuum
  • Working Temperature
  • -40C to 350C
Know more
Non Asbestos Gasket

Non Asbestos Gasket

MOQ : 100 Units

  • Application
  • Industrial sealing, pipelines, flanges, engines, boilers
  • Gasket Coefficient
  • 0.7 to 0.9
  • Hardness
  • 65-85 Shore A
  • Inner Ring
  • Optional (carbon steel, stainless steel)
  • Material
  • Other, Non-Asbestos fiber, NBR bound
  • Medium
  • Other, Steam, oil, water, gases, mild acids
  • Outer Ring
  • Optional (carbon steel, stainless steel)
  • Pressure Resistance
  • Up to 100 bar (depending on grade)
  • Shape
  • Other, Round, Rectangular, Custom
  • Size
  • Up to 1500 mm (custom sizes available)
  • Standard
  • IS 2712, BS, ASTM, DIN, JIS
  • Temperature Resistance
  • Up to 400C (depending on grade)
  • Thickness
  • 0.5 mm to 6 mm
  • Vaccum Range
  • Full vacuum up to 1500 mmHg
  • Working Temperature
  • -40C to +250C
Know more
Piston Ring Gasket for Valve

Piston Ring Gasket for Valve

MOQ : 100 Units

  • Application
  • Valve sealing and leakage prevention
  • Gasket Coefficient
  • 0.15
  • Hardness
  • 65-75 Shore A
  • Inner Ring
  • Available on request
  • Material
  • Other, High-grade PTFE (Polytetrafluoroethylene)
  • Medium
  • Other, Air, gas, steam, water, oil
  • Outer Ring
  • Available on request
  • Pressure Resistance
  • Up to 40 bar
  • Shape
  • Other, Round
  • Size
  • Customizable as per valve model
  • Standard
  • DIN 7603 / ASME B16.21
  • Temperature Resistance
  • Up to 230C
  • Thickness
  • 1.2 mm
  • Vaccum Range
  • To 103 mbar
  • Working Temperature
  • -40C to +230C
Know more
Piston Ring Gasket Set

Piston Ring Gasket Set

MOQ : 100 Units

  • Application
  • Automotive engine, piston sealing and gasket replacement
  • Gasket Coefficient
  • 0.12
  • Hardness
  • 55-65 HRC
  • Inner Ring
  • 66 mm
  • Material
  • Other, High-grade steel alloy
  • Medium
  • Other, Oil, Air, Fuel
  • Outer Ring
  • 72 mm
  • Pressure Resistance
  • Up to 8 MPa
  • Shape
  • Other, Round
  • Size
  • Customized as per engine model
  • Standard
  • OEM, IS 9436
  • Temperature Resistance
  • Up to 230C
  • Thickness
  • 2.5 mm
  • Vaccum Range
  • Up to 0.05 mbar
  • Working Temperature
  • -20C to 230C
Know more

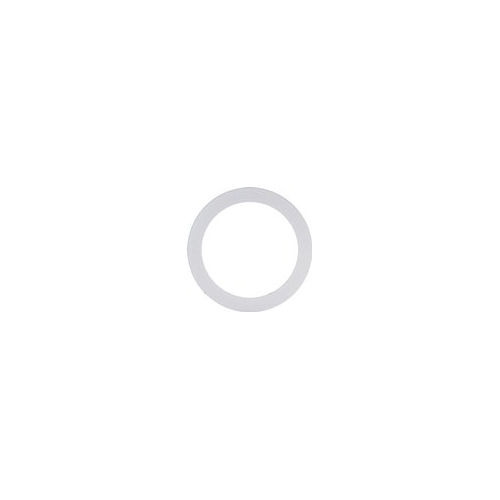

PTFE CUT Gasket

PTFE CUT Gasket

MOQ : 100 Units

  • Application
  • Used for sealing and insulation in chemical, pharmaceutical, and food industries
  • Gasket Coefficient
  • 0.1 - 0.2 (PV value)
  • Hardness
  • Shore D 50-60
  • Material
  • Other, Virgin PTFE (Polytetrafluoroethylene)
  • Medium
  • Other, Suitable for aggressive chemical media
  • Pressure Resistance
  • Up to 100 bar
  • Shape
  • Other, Round, Flat, Oval, or as required
  • Size
  • Custom sizes as per requirement
  • Standard
  • ASTM F104 / IS 2712 / BS 7531
  • Temperature Resistance
  • Up to +260C continuous
  • Thickness
  • 0.5 mm to 5 mm
  • Vaccum Range
  • Full Vacuum
  • Working Temperature
  • -200C to +260C
Know more
PTFE Cut Gasket

PTFE Cut Gasket

MOQ : 100 Units

  • Application
  • Sealing gaskets for pipelines, flanges, valves, and equipment in chemical, pharmaceutical, food and beverage, and petrochemical industries
  • Gasket Coefficient
  • 0.09
  • Hardness
  • 55-60 Shore D
  • Material
  • Other, PTFE (Polytetrafluoroethylene)
  • Medium
  • Other, Suitable for acids, alkalis, solvents, gases, and water
  • Pressure Resistance
  • Up to 100 bar
  • Shape
  • Other, Round, Oval, and Custom Shapes
  • Size
  • Custom sizes available as per requirement
  • Standard
  • ASTM F104, DIN 2690, BS 7531
  • Temperature Resistance
  • Up to 260C
  • Thickness
  • 0.5 mm to 5 mm
  • Vaccum Range
  • Full vacuum to 100 bar
  • Working Temperature
  • -200C to +260C
Know more
PTFE Gasket

PTFE Gasket

MOQ : 100 Units

  • Application
  • Industrial sealing, chemical processing, pipeline flange joints
  • Gasket Coefficient
  • Y value: 2.75; m value: 2.5
  • Hardness
  • 50-60 Shore D
  • Inner Ring
  • Optional, generally SS 304/316
  • Material
  • Other, PTFE (Polytetrafluoroethylene)
  • Medium
  • Other, Acids, alkalis, solvents, gases, water, chemicals
  • Outer Ring
  • Optional, generally SS 304/316
  • Pressure Resistance
  • Up to 100 bar
  • Shape
  • Other, Round/Flat/Custom
  • Size
  • Customized as per requirement (common range: 15 mm to 600 mm OD)
  • Standard
  • ASTM F1545 / ASME B16.21 / DIN 2690
  • Temperature Resistance
  • Up to +250C
  • Thickness
  • 1 mm to 12 mm
  • Vaccum Range
  • Full vacuum up to 1.33 105 Pa
  • Working Temperature
  • -200C to +250C
Know more
Rubber Gasket

Rubber Gasket

MOQ : 100 Units

  • Application
  • Automobile, Chemical, and Industrial sealing
  • Gasket Coefficient
  • 0.65
  • Hardness
  • 65 5 Shore A
  • Inner Ring
  • Optional
  • Material
  • Other, Nitrile Rubber (NBR)
  • Medium
  • Other, Oil, Water, Air, Chemicals
  • Outer Ring
  • Optional
  • Pressure Resistance
  • Up to 20 bar
  • Shape
  • Other, Round
  • Size
  • As per requirement
  • Standard
  • ASTM, IS, or as specified
  • Temperature Resistance
  • Up to 120C
  • Thickness
  • 3 mm
  • Vaccum Range
  • To 1x102 mbar
  • Working Temperature
  • -20C to 120C
Know more
Spiral Wound Gasket

Spiral Wound Gasket

MOQ : 100 Units

  • Application
  • Sealing in pipe flanges, heat exchangers, pressure vessels, valves
  • Gasket Coefficient
  • m = 3.0, y = 10000 psi
  • Hardness
  • 60 - 80 Shore A
  • Inner Ring
  • SS304, SS316 or as specified
  • Material
  • Other, Stainless Steel with graphite or PTFE filler
  • Medium
  • Other, Steam, oil, gas, chemicals
  • Outer Ring
  • Carbon Steel, SS304, SS316
  • Pressure Resistance
  • Up to 250 bar
  • Shape
  • Other, Round
  • Size
  • Customizable, standard range from 15 mm to 2000 mm
  • Standard
  • ASME B16.20, BS 4825
  • Temperature Resistance
  • Up to 550C
  • Thickness
  • 3.2 mm
  • Vaccum Range
  • 10^-6 torr
  • Working Temperature
  • -200C to +550C
Know more
Spitman Gasket

Spitman Gasket

MOQ : 100 Units

  • Application
  • Sealing pipeline flanges and industrial joints
  • Gasket Coefficient
  • 0.6 - 0.9
  • Hardness
  • 50-95 Shore A (depending on material)
  • Inner Ring
  • Stainless steel or carbon steel
  • Material
  • Other, Graphite, PTFE, or compressed non-asbestos fibre
  • Medium
  • Other, Water, steam, chemicals, oils, gases
  • Outer Ring
  • Carbon steel, optional stainless steel
  • Pressure Resistance
  • Up to 250 bar
  • Shape
  • Other, Round
  • Size
  • Available in standard and custom sizes
  • Standard
  • ASME, DIN, JIS
  • Temperature Resistance
  • Up to 600C
  • Thickness
  • 1 mm to 5 mm
  • Vaccum Range
  • 10^-2 Torr
  • Working Temperature
  • -200C to +600C (depending on material)
Know more
